Venturi meter
- Venturi meter theory works on the Bernoulli equation such that the velocity increases as the pressure decreases.
- This theory states that when the cross-sectional area of the flow decreases, a pressure difference between the different regions of the flow is created, and it helps to measure the difference under pressure.
- This pressure differential helps to measure the discharge inflow.
Important Points to Remember

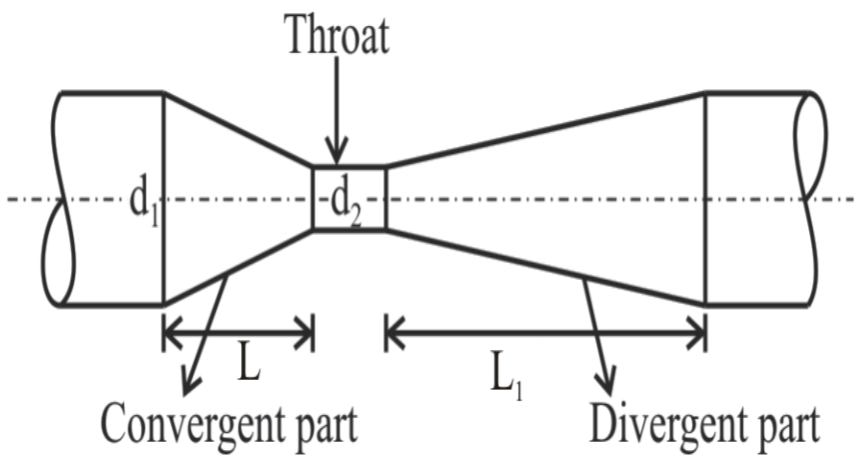

· Convergence angle (α) = 20° to 22°
· Divergence angle (b) = 5° to 7°
· Length of convergent cone (L) = 2.5 D
· Length of divergent cone (L1) = 7.5 D
· Length of throat (Lth) = D & diameter d = ½ to 1/3
Q. In order, to avoid separation in venturi meter the angle of divergence is kept
(a) 100 to 150 (b) 150 to 200
(c) 50 to 70 (d) 70 to 100
Ans. c
